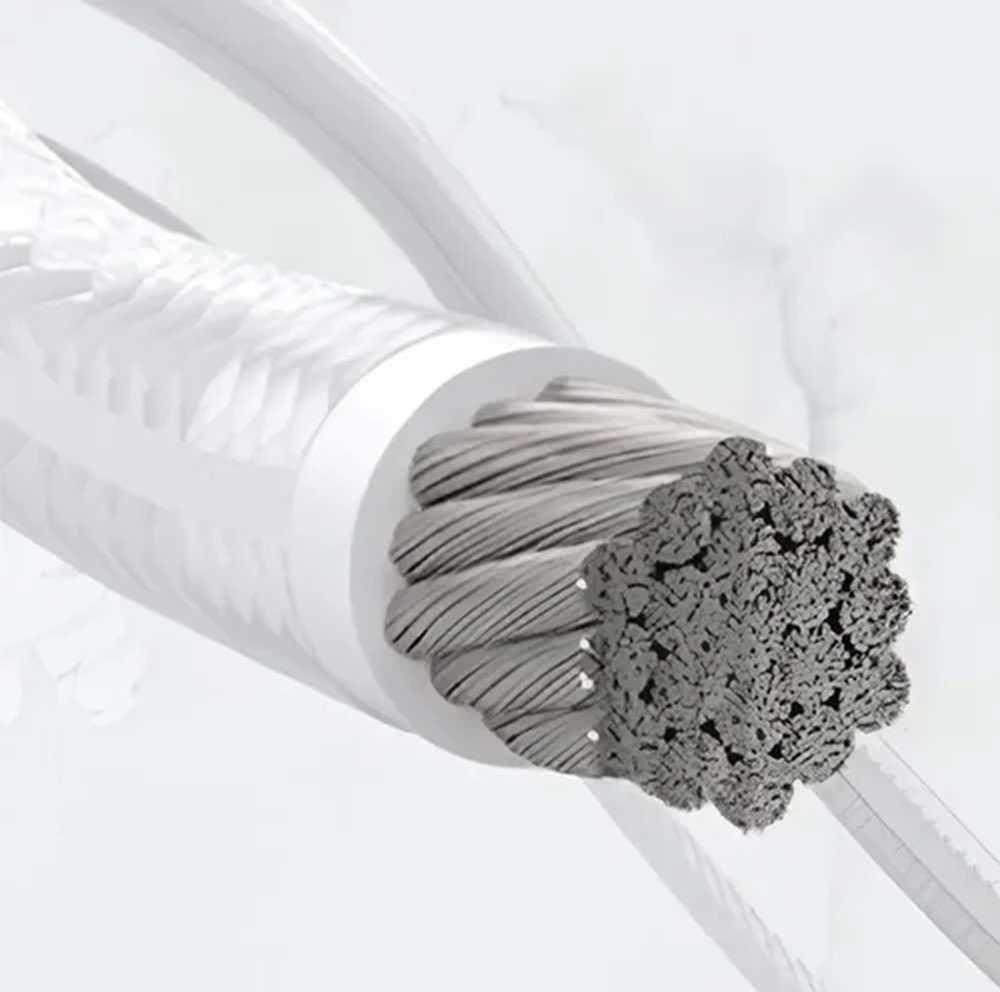

Uninyvin Cable
Glass-fibre & nylon braided, high-temperature hook-up cable for aircraft wiring, UPS panels and server-room installations.
105°CBS G 177Glass/nylon braid
Voltage600 V
Temperature-35°C to 105°C continuous conductor temperature
StandardBS G 177
Technical Specifications
| Construction | |
| Conductor | Annealed tinned copper, flexible stranded |
| Conductor size range | 0.35 – 120 sq.mm (AWG 22 – 0000) |
| Number of cores/pairs | Single core (multicore on request) |
| Insulation | HR-PVC (heat-resisting PVC) |
| Inner sheath | N/A |
| Shielding/screen | Metal braid (optional, Nyvinmet variant) |
| Armour | N/A |
| Outer sheath | Glass-fibre yarn braid + coated nylon/synthetic yarn braid (HRFR outer sheath on request) |
| Ratings & Standards | |
| Voltage grade | 600 V |
| Temperature rating | -35°C to 105°C continuous conductor temperature |
| Applicable standards | BS G 177, KSD 07-73-1993 |
| Special properties | Higher current-carrying capacity than an equivalent PVC cable; abrasion & chemical-resistant glass/nylon braid |
Applications
Aircraft & airframe wiring
UPS system panel wiring
Server room & data-centre installations
Equipment needing high heat & abrasion resistance in a compact size
