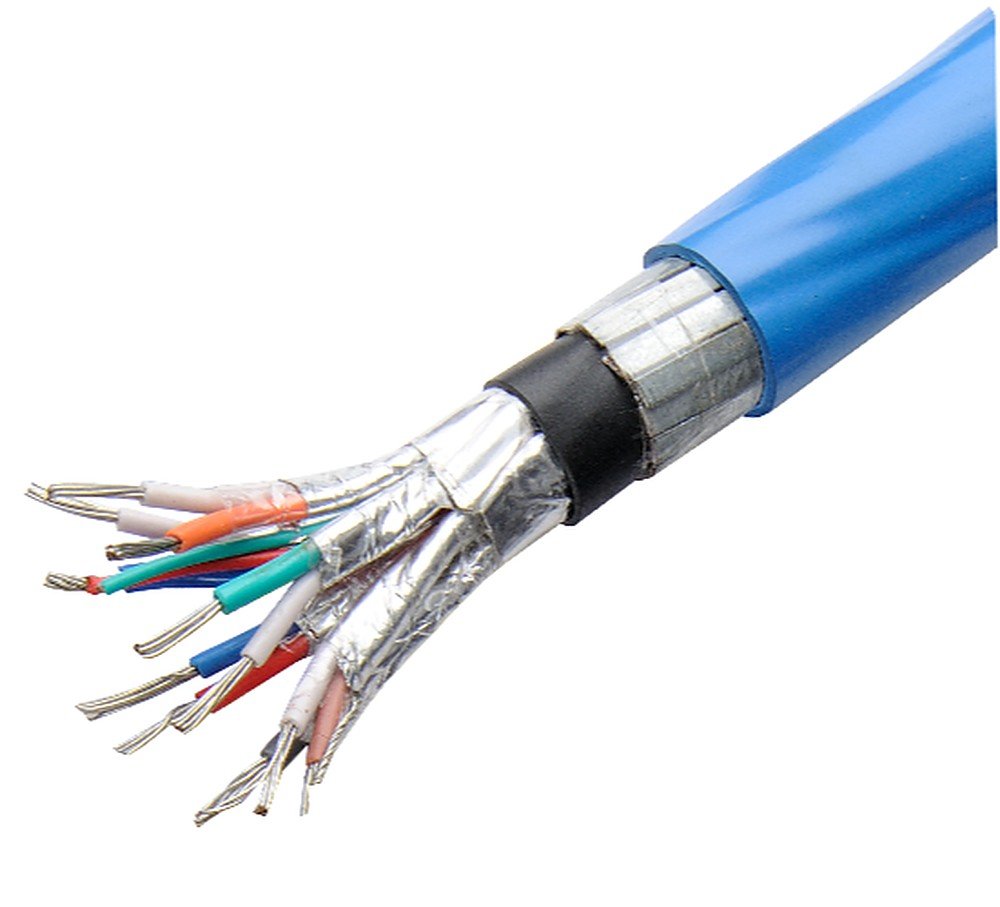

Instrumentation Cable (Pair/Triad Shielded)
Shielded pair and triad cables for accurate, interference-free instrumentation signals.
ShieldedFRLSBS 5308
Voltage300/500 V
Temperature70°C continuous
StandardBS 5308 (Part 1 & 2)
Technical Specifications

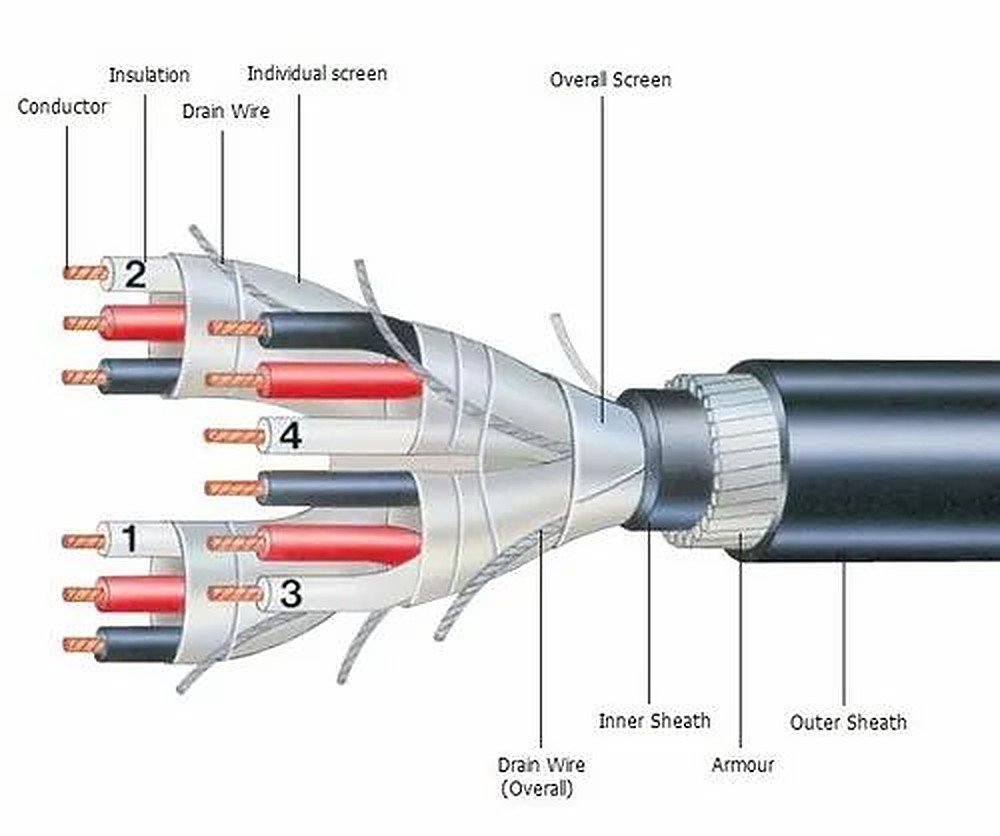

| Construction | |
| Conductor | Stranded tinned copper |
| Conductor size range | 0.5 – 2.5 sq.mm (20–13 AWG) |
| Number of cores/pairs | 1 – 24 pair / triad |
| Insulation | PVC / PE |
| Inner sheath | Extruded PVC bedding |
| Shielding/screen | Individual + overall Al-Mylar with tinned Cu drain wire |
| Armour | GI wire braid / strip (optional, for direct burial) |
| Outer sheath | PVC (FRLS standard) |
| Ratings & Standards | |
| Voltage grade | 300/500 V |
| Temperature rating | 70°C continuous |
| Applicable standards | BS 5308 (Part 1 & 2), IS 10810 (test methods) |
| Special properties | Individually + overall shielded, low capacitance, FRLS |
Applications
DCS / PLC signal transmission
Process instrumentation loops
Analog & digital field signals
Refinery & plant control rooms
