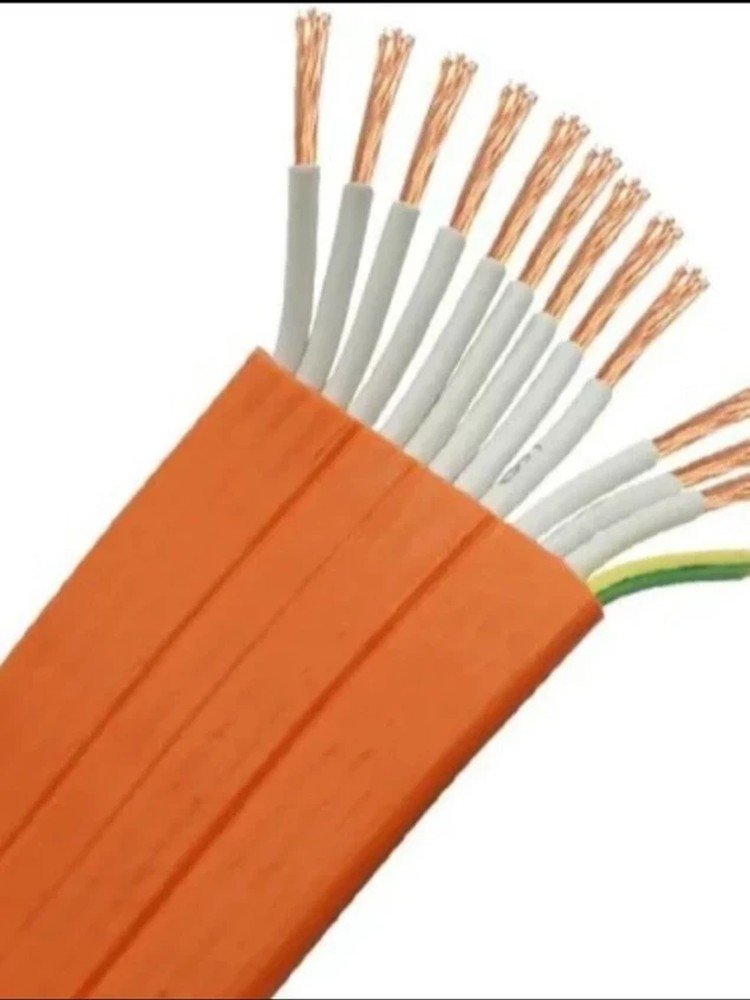

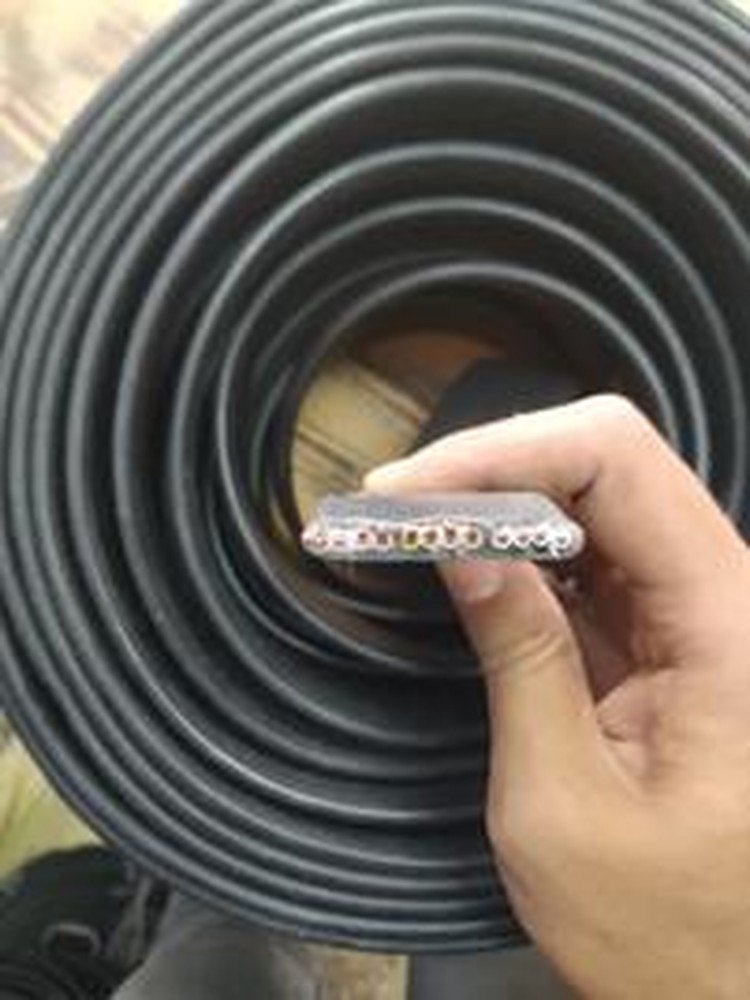

Trailing Cable
Extra-flexible rubber cable designed for continuous flexing in mobile and reel applications.
Extra flexibleOil & weather resistantIS 9968
Voltage1.1 kV
Temperature-25°C to 85°C, continuous flexing duty
StandardIS 9968 (Part 1 & 2)
Technical Specifications
| Construction | |
| Conductor | Extra flexible stranded copper, Class 5 (IS 8130) |
| Conductor size range | 1.5 – 120 sq.mm |
| Number of cores/pairs | 2 – 4 core (multicore on request) |
| Insulation | EPR / Rubber |
| Inner sheath | Extruded rubber bedding |
| Shielding/screen | N/A |
| Armour | Unarmoured |
| Outer sheath | Heavy-duty rubber (CPE/PCP), abrasion & oil resistant |
| Ratings & Standards | |
| Voltage grade | 1.1 kV |
| Temperature rating | -25°C to 85°C, continuous flexing duty |
| Applicable standards | IS 9968 (Part 1 & 2), BS 6116 |
| Special properties | Extra flexible, mechanically robust, weather & oil resistant |
Applications
Mobile equipment & machinery
Mining & material handling
Portable power tools & generators
Reel-mounted power supply
