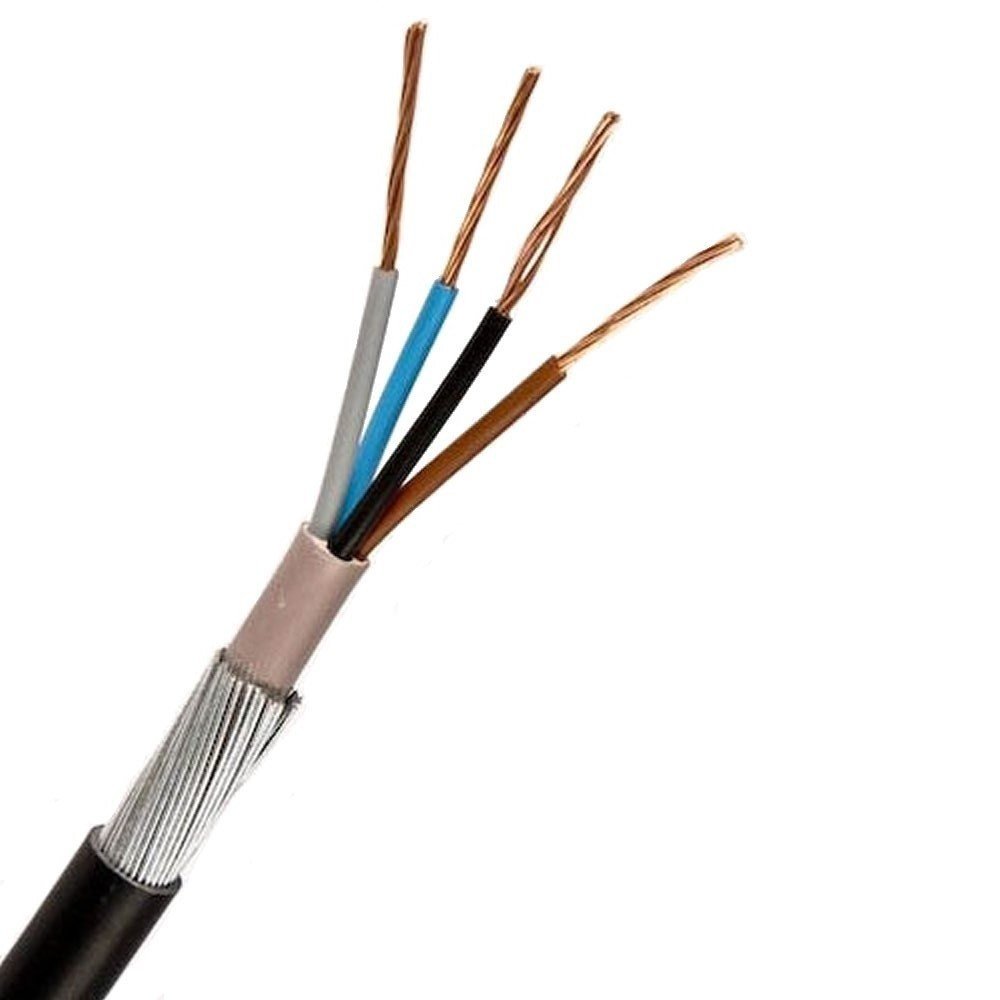

Armoured Control Cable
Galvanised steel wire/strip armoured control cable for direct burial and mechanically demanding routes.
ArmouredFRLSConfirm with Incab
Voltage650/1100 V
Temperature70°C continuous
StandardIS 1554 (Part 1)
Technical Specifications
| Construction | |
| Conductor | Stranded plain/tinned copper, Class 2 (IS 8130) |
| Conductor size range | 0.5 – 6 sq.mm |
| Number of cores/pairs | 2 – 61 core |
| Insulation | PVC Type A, HR / XLPE |
| Inner sheath | Extruded PVC bedding |
| Armour | GI round wire / GI strip |
| Outer sheath | PVC (FRLS standard) |
| Ratings & Standards | |
| Voltage grade | 650/1100 V |
| Temperature rating | 70°C continuous |
| Applicable standards | IS 1554 (Part 1), VDE 0276 |
| Special properties | Standard armouring for direct-buried & mechanically exposed runs |
Applications
Direct-buried control runs
Outdoor / underground panel interconnections
Substation & switchyard control wiring
Areas with rodent or mechanical risk

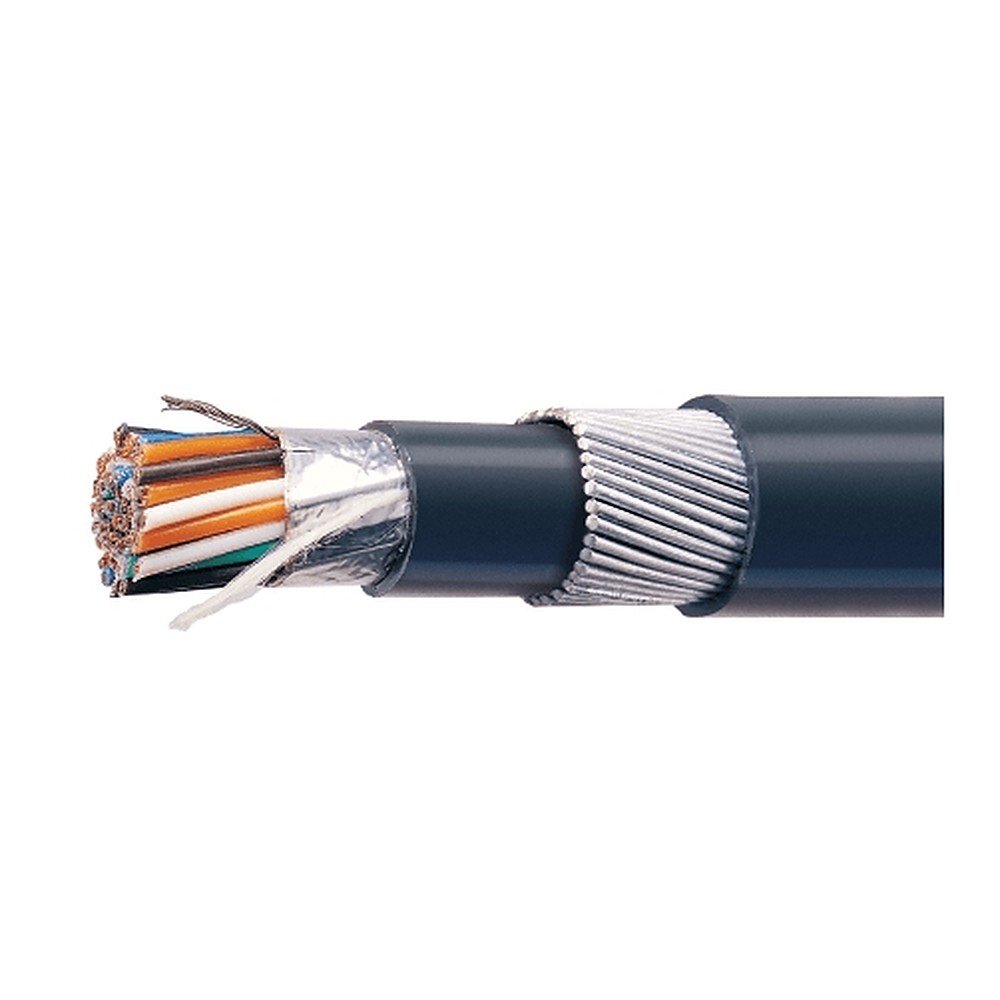

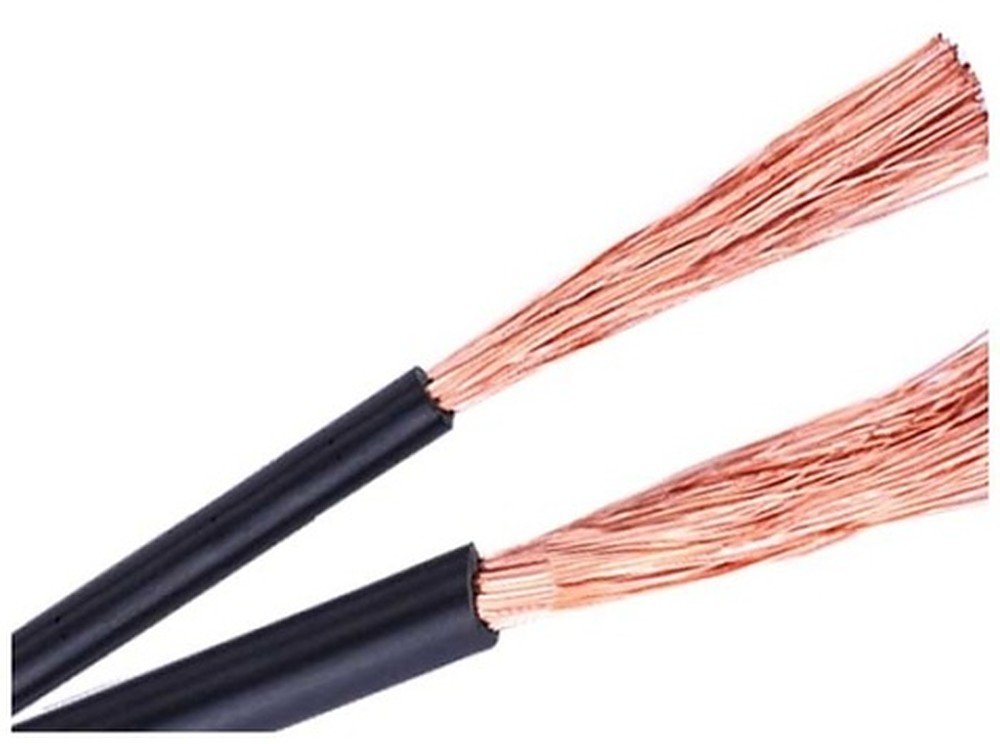

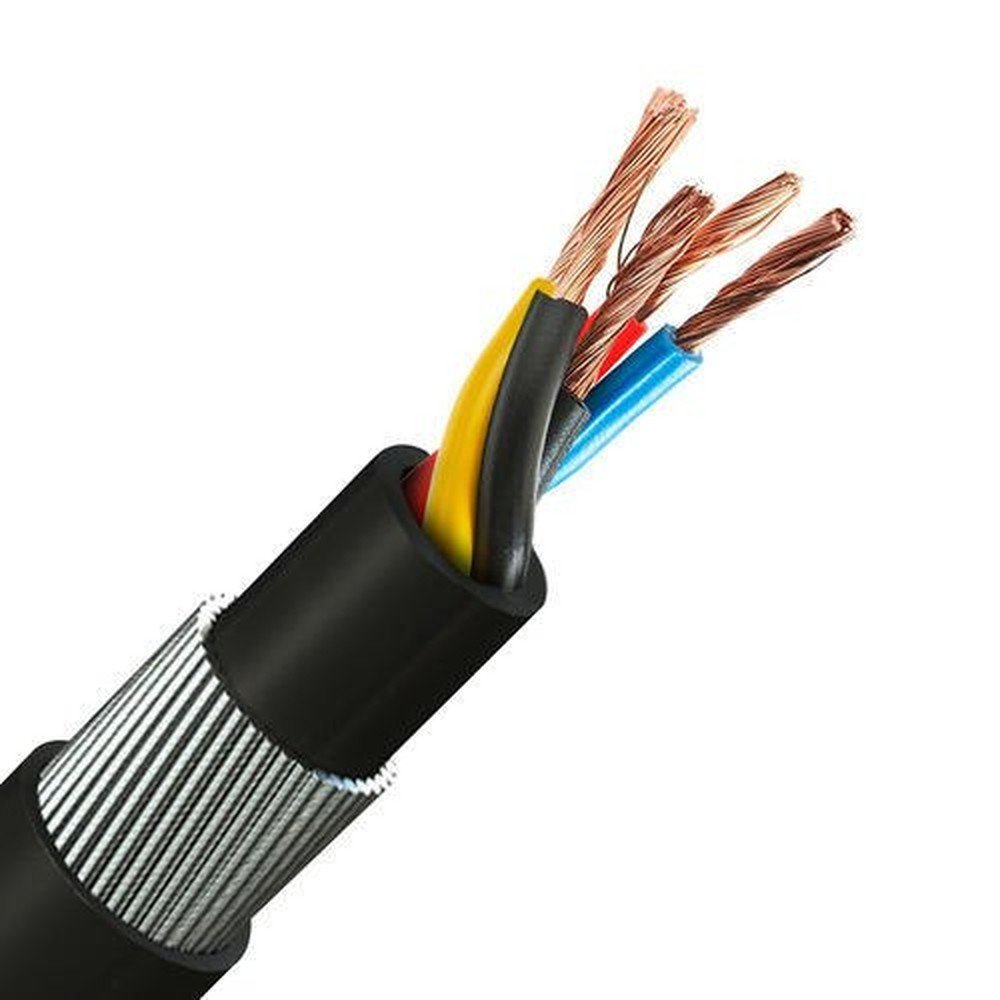

Related Control Cables
