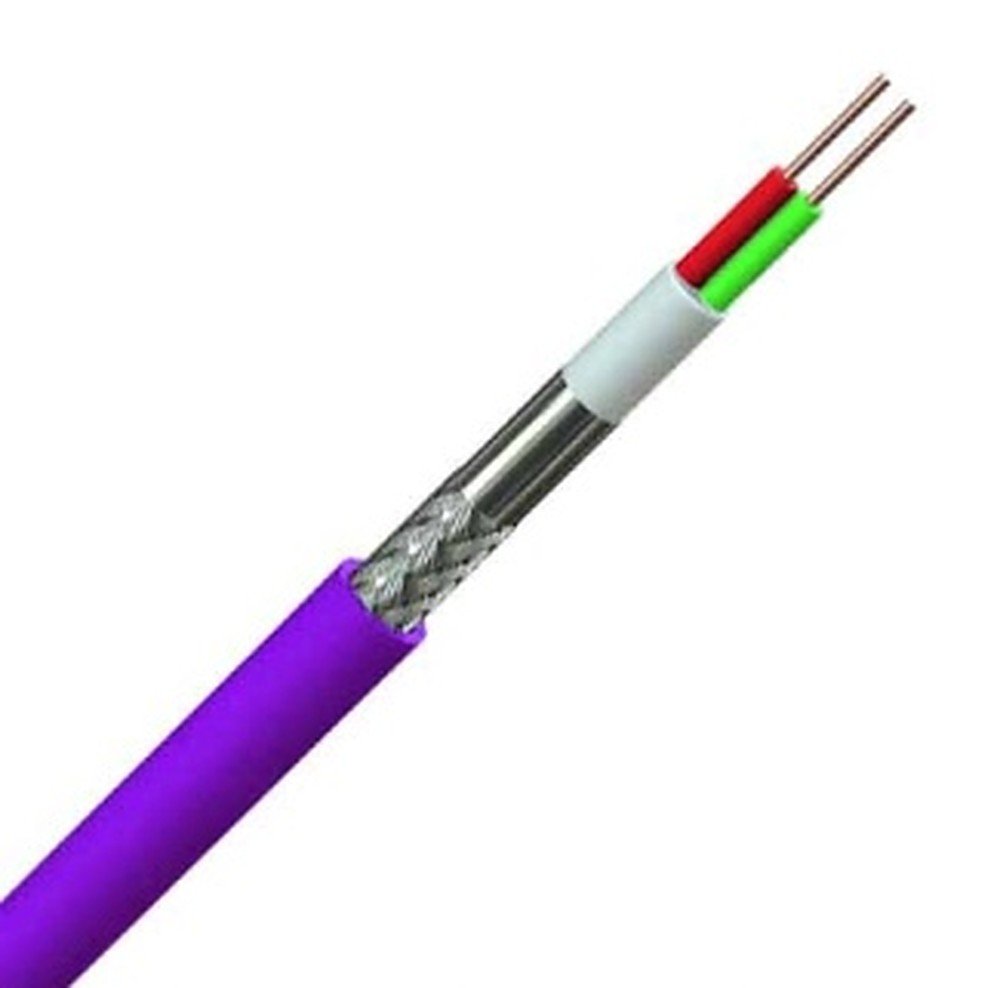

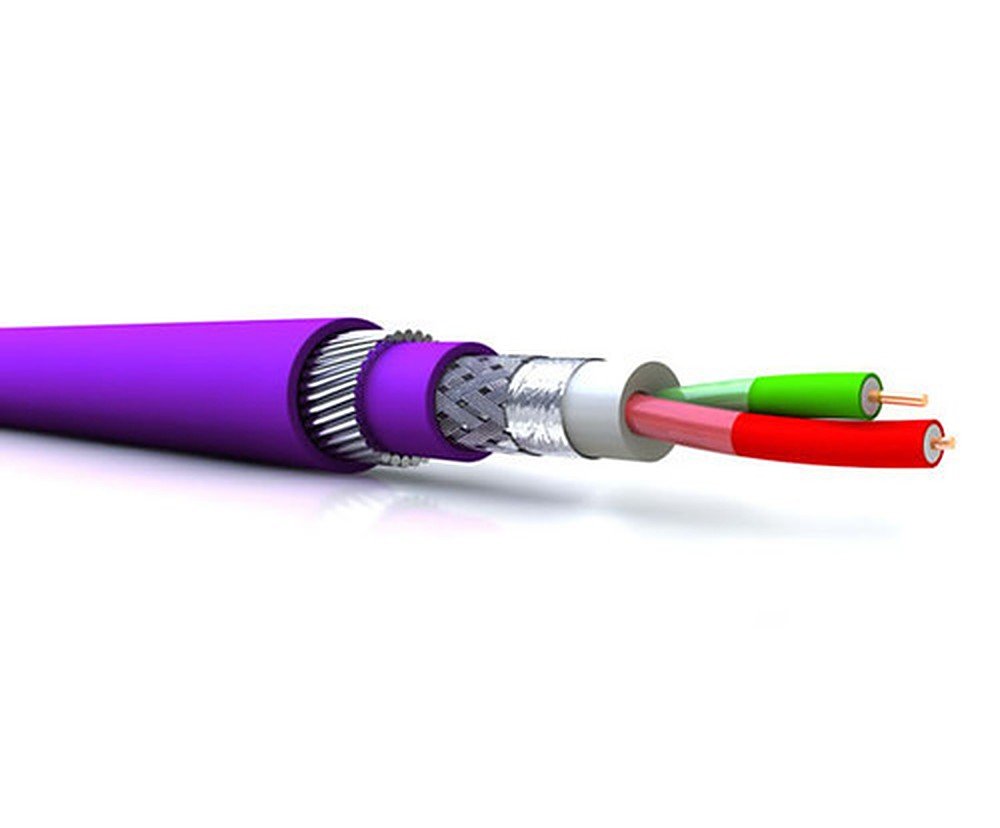

Modbus Cable
Twisted, shielded pair cable engineered for reliable RS-485 Modbus communication.
120ΩDouble shieldedRS-485
Voltage300 V
Temperature70°C continuous
StandardEIA/TIA-485
Technical Specifications

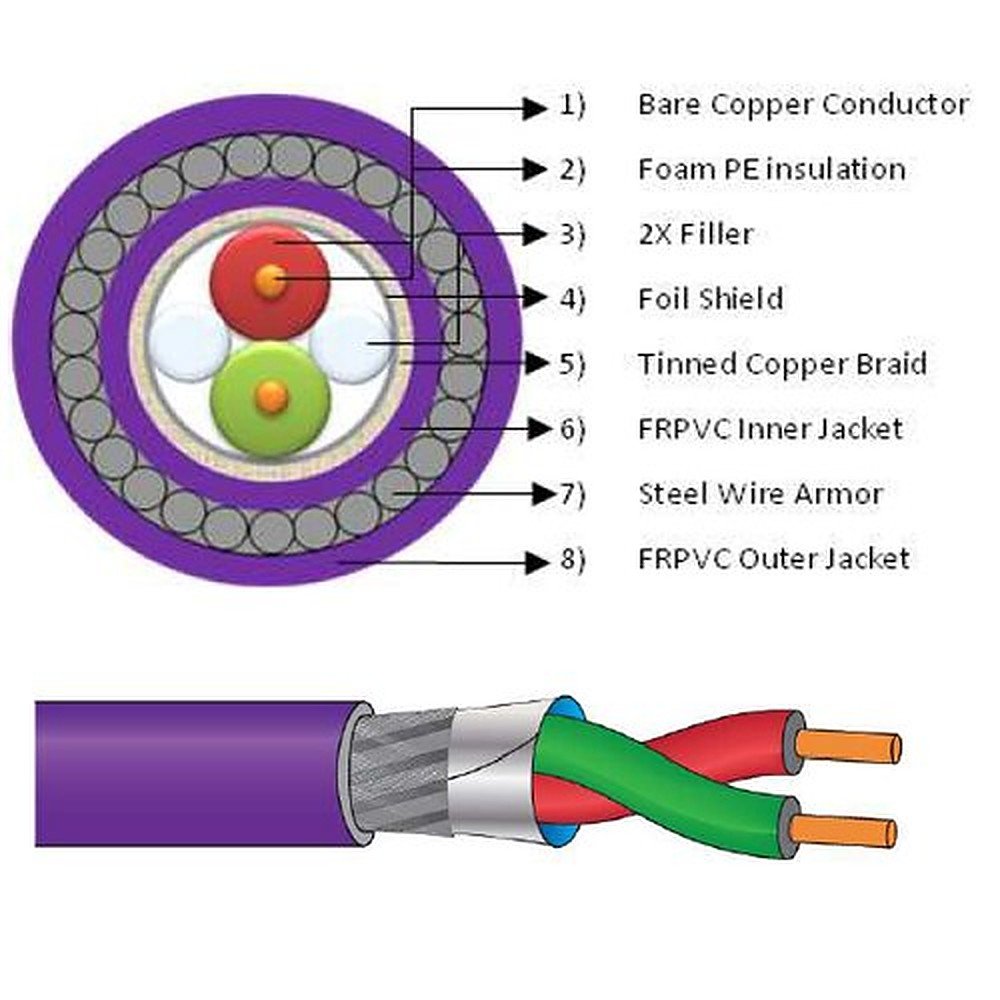

| Construction | |
| Conductor | Stranded tinned copper, twisted pair |
| Conductor size range | 0.5 – 1.5 sq.mm |
| Number of cores/pairs | 1 pair / 2 pair |
| Insulation | PE / Foamed PE |
| Inner sheath | N/A (direct overall screen) |
| Shielding/screen | Al-Mylar tape + tinned Cu braid (double shield) with drain wire |
| Armour | Unarmoured (armoured version available) |
| Outer sheath | PVC (FRLS) |
| Ratings & Standards | |
| Voltage grade | 300 V |
| Temperature rating | 70°C continuous |
| Applicable standards | EIA/TIA-485, IS 694 (insulation basis) |
| Special properties | 120Ω characteristic impedance, low capacitance, EMI shielded |
Applications
RS-485 Modbus networks
Building automation (BMS)
SCADA field communication
Industrial serial networks
