Coaxial Cable
75Ω coaxial cable for CCTV, CATV and RF/video signal transmission with reliable shielding against interference.
75ΩDual/quad shieldIEC 61196
VoltageSignal level (video/RF, not power-rated)
Temperature-20°C to 70°C
StandardIEC 60096-1
Technical Specifications

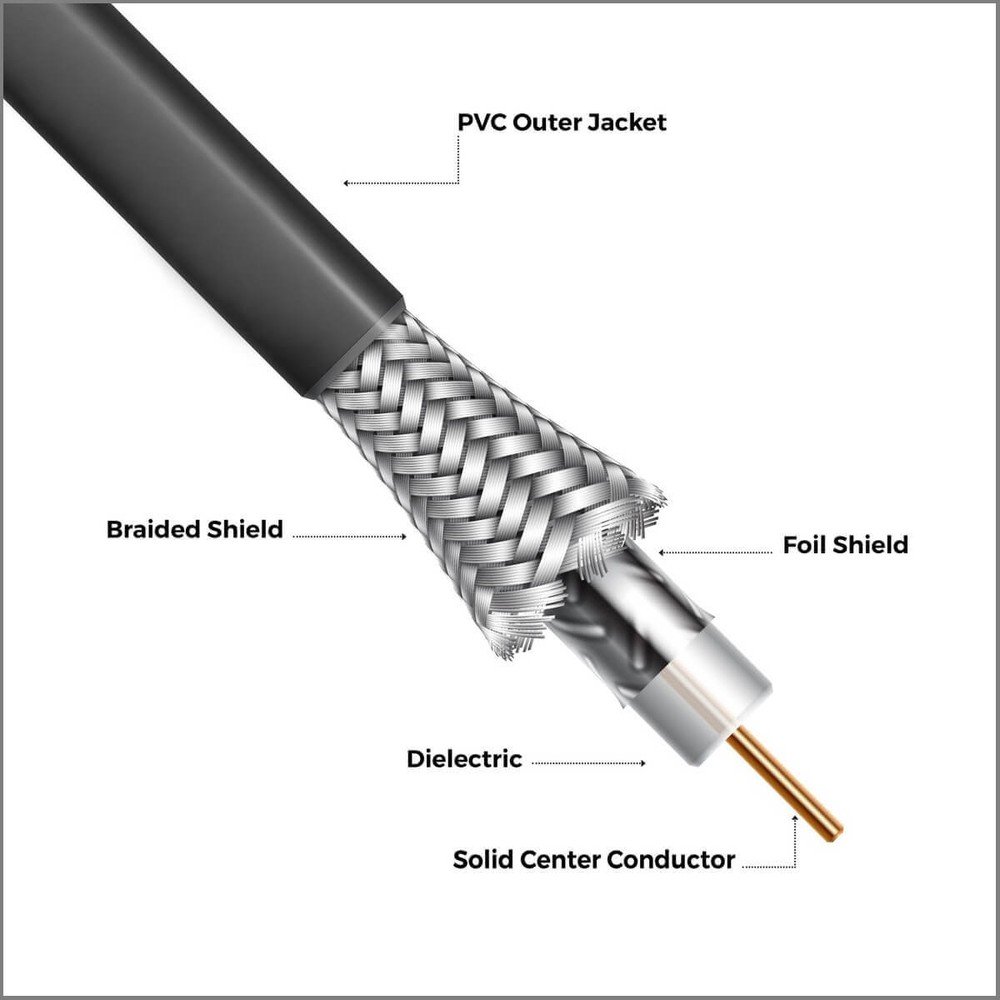

| Construction | |
| Conductor | Solid bare copper / copper-clad steel (CCS), single-wire centre conductor |
| Conductor size range | 18 – 20 AWG (RG6/RG59 equivalent); larger cores for RG11-type trunk runs |
| Number of cores/pairs | 1 (coaxial, single centre conductor) |
| Insulation | Foam / solid Polyethylene (PE) dielectric |
| Inner sheath | N/A |
| Shielding/screen | Al-foil + Al/Cu braid (single, dual or quad shield options) |
| Armour | Unarmoured (aerial messenger-wire variant on request) |
| Outer sheath | PVC (indoor) / UV-stabilised PE (outdoor, black jacket) |
| Ratings & Standards | |
| Voltage grade | Signal level (video/RF, not power-rated) |
| Temperature rating | -20°C to 70°C |
| Applicable standards | IEC 60096-1, IEC 61196-1 |
| Special properties | 75Ω characteristic impedance, low signal loss to 3 GHz (RG6-equivalent), dual/quad shield options for high-EMI sites |
Applications
CCTV & HD-over-coax camera runs
CATV & DTH/satellite distribution
Broadcast & RF signal transmission
Building intercom & video door-entry systems
